Pushback Pallet Rack Systems in Dallas–Fort Worth, TX
High-density LIFO pallet rack — 2 to 6 pallets deep per lane, gravity-fed nested carts, standard counterbalance forklift compatible.
Ready to get started? Get a free, no-obligation quote today.
About Pushback Rack

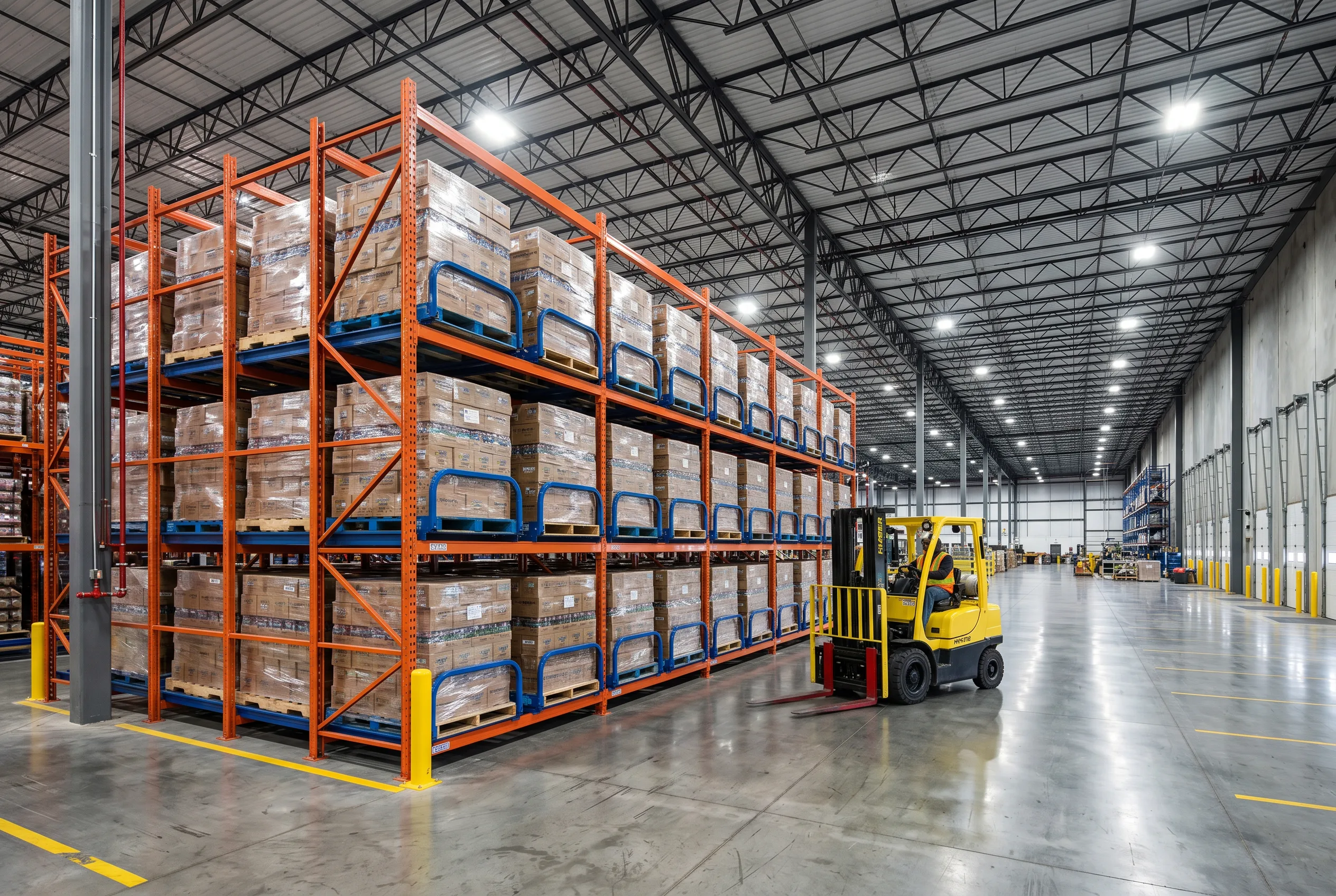

Pushback rack is a high-density cart-based storage system that stores 2 to 6 pallets deep in each lane on gently inclined rails. When you load a pallet, the previous pallet is pushed back on nested carts; when you pick, gravity rolls the next pallet forward into pick position automatically. The result is roughly 1.8 to 2 times the pallet positions of selective racking in the same footprint — without the forklift-entry damage risk of drive-in rack, and without investing in specialized trucks. Pushback is the default high-density choice for DFW cold storage, beverage distribution, and CPG operations where SKU homogeneity allows lane-level grouping and LIFO rotation is acceptable. DFW Pallet Racking designs, supplies, and installs pushback systems engineered to IBC 2021 with Texas amendments and RMI ANSI MH16.1-2023, with full seal-stamped drawings and permit support for every install throughout the Dallas–Fort Worth metroplex.
How Pushback Rack Works
Inclined rails & nested carts
Each lane is built from steel rails pitched at 3 to 6 percent, with nested wheeled carts stacked one inside the next — one cart per pallet position beyond the front.
Load from the aisle
Forklift sets a pallet on the top cart. Adding the next pallet pushes the prior pallet back; carts nest smoothly beneath each successive load.
Gravity feeds retrieval
Pull the front pallet and the next cart rolls forward on its own into pick position. No power, no activation — just the incline.
Same aisle, in and out
Loading and picking both happen from the same face. Forklifts never enter the rack structure, which is the primary safety and maintenance advantage over drive-in.
System Specifications
- Lane depth
- 2 to 6 pallets deep
- Pallet capacity
- Up to 3,000 lbs standard, 4,000 lbs structural
- Rail pitch
- 3–6% gravity-feed incline
- Cart system
- Nested powder-coated steel carts on polyurethane wheels
- Upright options
- 3" × 3" structural channel or 3" × 1-5/8" teardrop
- Beam profile
- Welded step beam or pallet-support crossbar
- Rotation
- LIFO (Last In, First Out)
- Forklift type
- Standard counterbalance — no reach truck required
- Code compliance
- IBC 2021 (Texas amendments), RMI ANSI MH16.1-2023
- DFW seismic / wind
- SDC A–B, wind governed by ASCE 7 (110 mph 3-sec gust)
Is Pushback Rack Right for Your Operation?
Choose Pushback Rack when…
- You store 2 to 6 pallets of the same SKU together and LIFO rotation is acceptable
- Cold-storage energy costs make wide-aisle drive-in forklift traffic expensive
- Upright damage from in-rack forklift traffic is a documented cost in your facility
- You need 1.8–2× selective density without investing in a reach or narrow-aisle fleet
- You want high density but need faster cycle times than drive-in allows
Consider alternatives when…
- You need strict FIFO rotation for dated inventory — consider pallet flow instead
- Every pallet in a lane is a unique SKU — stay with selective racking
- You need lane depths greater than 6 pallets — consider drive-in or pallet flow
- Your fleet already runs reach trucks and you want maximum density at lowest cost per position — consider drive-in
DFW Metroplex Use Cases
Where we typically install pushback rack across the Dallas–Fort Worth region:
Cold storage — South Dallas, Lancaster, AllianceTexas
Americold, Lineage, and US Cold–scale facilities use pushback to compress footprint while keeping forklifts in wider conditioned aisles — which matters because every cubic foot of conditioned air lost to forklift traffic is reload energy on the rack.
Beverage distribution — Fort Worth, AllianceTexas
Ben E. Keith, Glazer's, and Southern Glazer's Wine & Spirits run homogeneous SKU pallet lots — a perfect fit for pushback lane grouping and LIFO rotation on fast-moving products.
CPG & grocery DC — AllianceTexas, Hutchins
Martin-Brower, Kraft Heinz, and DFW-region regional grocery DCs use pushback for pre-shipment staging and bulk SKU storage where same-SKU lane depth is the planning unit.
Automotive tier-1 suppliers — Arlington, Grand Prairie
Buffer storage for JIT feeds to the GM Arlington Assembly line and surrounding tier-1 plants — pushback provides density for repetitive SKUs without risking rack hits from the line-side reach trucks.
Paper & packaging — Mesquite, Garland
Corrugated, stretch film, and label stock run in high-volume homogeneous SKUs. Pushback cuts the pallet-position footprint without forcing the plant into a specialty truck fleet.
Pushback vs. Other High-Density Options
| Attribute | Selective | Pushback | Drive-In | Pallet Flow |
|---|---|---|---|---|
| SKU selectivity | 100% | Medium (per lane) | Low (per bay) | Low (per lane) |
| Rotation | Any (FIFO or LIFO) | LIFO | LIFO | FIFO |
| Lane depth | 1 pallet | 2–6 pallets | 2–10 pallets | 2–20 pallets |
| Forklift enters rack | No | No | Yes | No |
| Rack-damage exposure | Low | Low | High | Low |
| Density vs. selective | 1.0× | 1.8–2.0× | 2.0–2.5× | 2.5–3.0× |
| Forklift required | Standard | Standard | Standard | Standard |
| Relative cost per position | $ | $$ | $$$ | $$$$ |
Highlighted column shows how pushback rack stacks up across the most common high-density alternatives.
Product Features
- 2, 3, 4, 5, and 6-deep lane configurations
- Nested steel cart system on polyurethane wheels, powder-coated finish
- Gravity-feed inclined rails — no power or activation required
- Compatible with 42" × 48" GMA and custom pallet footprints
- Teardrop roll-formed or structural-channel upright options
- Engineered to IBC 2021 (Texas amendments) and RMI ANSI MH16.1-2023
- Sealed structural drawings provided for every DFW metroplex installation
Benefits for Your Business
Pushback Rack — Frequently Asked Questions
How many pallets deep can pushback rack go?
Standard configurations run 2, 3, 4, 5, or 6 pallets deep per lane. Deeper lanes (7+) can be engineered but are uncommon because cart-nesting tolerance and pallet-quality variation create jam risk beyond 6 deep. Most DFW installations land at 3 or 4 deep as the balance point between density and operational reliability.
What is the weight limit per pallet in pushback rack?
Typical pushback systems are rated to 3,000 lbs per pallet position, with structural systems rated to 4,000 lbs. Cold-storage beverage and food-grade CPG loads sit comfortably inside standard ratings. Heavier loads — metal coils, automotive castings, some construction product — usually require structural systems or an alternative rack type entirely.
Can I mix SKUs in the same pushback lane?
You can, but each lane rotates LIFO — the last pallet loaded is the first one picked. If two SKUs share a lane, the rearmost SKU is inaccessible until the lanes in front of it are cleared. For FIFO-critical inventory (food with tight code dates, dated pharmaceutical lots), pallet flow rack is the better choice.
Does pushback require specialized forklifts?
No. Pushback is designed to work with standard counterbalance forklifts because the forklift never enters the rack. This is a major advantage over drive-in systems, which typically need reach or narrow-aisle trucks. You load and pick from the same aisle with whatever fleet you already operate.
How does pushback compare to drive-in rack?
Both are LIFO and both increase density over selective, but drive-in trades more density (2–10 pallets deep) for higher rack-damage exposure because forklifts enter the rack structure. Drive-in pallets also sit on side rails rather than beams. Pushback is typically the right call when your fleet is not already running reach trucks and you want to minimize ongoing rack repair spend.
What is the typical ROI versus selective racking?
Pushback costs roughly 2× per pallet position versus selective, but delivers 1.8 to 2.0× the positions in the same footprint. The ROI math usually sits outside the rack itself: avoided building expansion, reduced aisle count, and lower energy costs in cold-storage environments. Most DFW pushback projects pencil out in 18 to 36 months when building expansion would otherwise be on the table.
